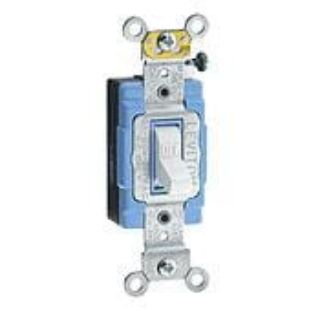

Actual Product May Vary From Image

1103-2 LEV

Name: 1103-2 LEV
Brand: Leviton Manufacturing
SKU: 1103-2 LEV
Availability: OutOfStock

Leviton® 1103-2 3-Way Self-Grounding AC Quiet Toggle Switch, 120/277 VAC, 14 A, 1/2, 2 hp Power Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 1103-2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Way Self-Grounding

Alternate Supplier #

Grainger - 25MK42

Description

Leviton® AC Quiet Toggle Switch, 3-Way Self-Grounding, 120/277 VAC, 14 A, 1/2, 2 hp Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions

Application

Commercial Applications

Standards

Features

Rugged construction for trouble free service in industrial environments
Heavy gauge copper alloy 1-piece arm for smooth, quiet, firm toggle action
Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
Large head, deep slotted terminal screws for fast, easy wiring, accept up to #10 copper and copper clad wire
Self-grounding clip (self grounding when used with a grounded metal wallbox)
1/2 hp at 120 VAC, 2 hp at 240 VAC power rating

Specifications

Actuator:	Toggle
Amperage Rating:	14 A
Color:	Brown
Dimensions:	46 in H x 1.31 in W x 1.6 in D
Enclosure:	NEMA WD-1/WD-6
Environmental Conditions:	-40 to 120 deg C Operating Temperature
Material:	Thermoplastic
Mounting:	Surface
Operating Cycles:	50000 Cycles
Power Rating:	1/2, 2 hp
Terminal Type:	Side Wire
Voltage Rating:	120/277 VAC
