Actual Product May Vary From Image

110422.00 LEE

Name: 110422.00 LEE
Brand: Leeson Electric
SKU: 110422.00 LEE
Price: 985.57 USD
Availability: OutOfStock

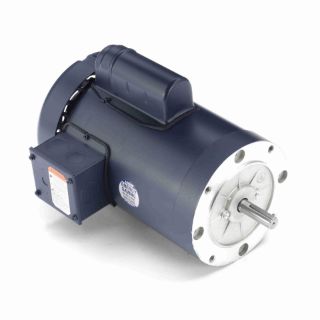

LEESON® 110422.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 3450 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110422.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$985.57

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 2 hp, 115/208 to 230 VAC, 20/11.4 to 10 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.48 in L Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	20/11.4 to 10 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.48 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
