110429.00 LEE

Name: 110429.00 LEE
Brand: Leeson Electric
SKU: 110429.00 LEE
Availability: OutOfStock

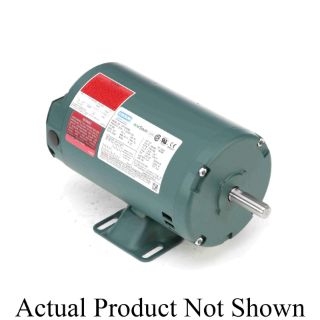

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

110429.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 1.5 hp, 208 to 230/460 VAC, 4.4 to 4.2/2.1 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, DP Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.25 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.87 in L x 6.5 in W x 6.76 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Squirrel cage induction run

Specifications

Amperage Rating:	4.4 to 4.2/2.1 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.87 in L x 6.5 in W x 6.76 in H
Enclosure Type:	DP
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	2.25 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
