110446.00 LEE

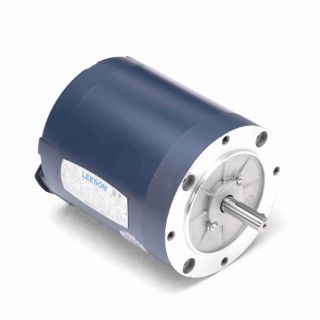

Picture of 110446.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
110446.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$445.74 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 798KK0

Description

LEESON® Ultimate e® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 0.33 hp, 208 to 230/460 VAC, 1.1/0.55 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 8 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.9 in L Dimensions

Application

Pump, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

  • Standard efficient ratings
  • Inverter rated
  • Shielded ball bearings for direct coupled applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
  • WattSaver® e premium efficient motors
  • Squirrel cage induction run
  • Heavy-duty, rolled steel construction ensures motor durability
  • Permanently lubricated sealed bearings extend the lifetime of the motor
  • Suitable for belt-driven or fan-on-shaft applications
  • Operational at 208-230/460 V at 60Hz.

Specifications

Amperage Rating:1.1/0.55 A
Application Type:Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:9.9 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.33 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:3
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:3450 rpm
Temperature Rating:40 deg C
Torque Rating:8 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
