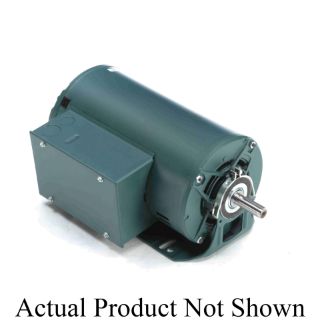

Actual Product May Vary From Image

110478.00 LEE

Name: 110478.00 LEE
Brand: Leeson Electric
SKU: 110478.00 LEE
Price: 980.00 USD
Availability: OutOfStock

LEESON® 110478.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 1 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56H Frame, 3450 rpm Speed, Resilient Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110478.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$980.00

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: Fan and Blower Motors, General Purpose HVAC Motors, Special Features: Capacitor Start Motors, 1 hp, 115/208 to 230 VAC, 12/6.2 to 6 A, 60 Hz, 1 ph, 3450 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1.25, Ball Bearing, 4 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.85 in L x 6.5 in W

Application

Belt Driven Fans or Fan-on-Shaft, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	12/6.2 to 6 A
Application Type:	Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.85 in L x 6.5 in W
Enclosure Type:	DP
Frame:	56H
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	4 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
