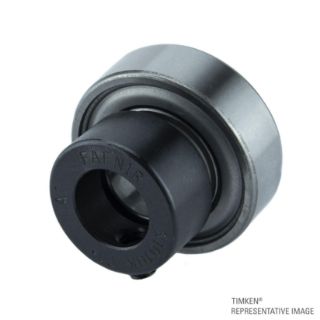

Actual Product May Vary From Image

1105KRR TKN

Name: 1105KRR TKN
Brand: Timken
SKU: 1105KRR TKN
Price: 207.94 USD
Availability: OutOfStock

WIR Eccentric, Standard Duty

Manufacturer: Timken

Manufacturer part number: 1105KRR

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$207.94

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

WIR Eccentric, Standard Duty | 33.34 mm 1.31 in Bore 71.99 mm 2.83 in OD

Features

Designed for extremely dirty or wet conditions
Feature R-seals with flared lips that firmly contact the ground O.D. of the inner ring
R-seals provide a positive seal against dirt and other contaminants, while effectively retaining the lubricant
Equipped with shroud-seals, providing extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Longer sealing integrity provided by outboard and inboard caps
Self-tightens in application with no shaft damage

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	1.31275
Bore Size (ID) - mm:	33.34385
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	6400
Fillet Radius - Inch:	0.043
Fillet Radius - Millimeter:	1.0922
Inner Ring Width - Inch:	1.48205
Inner Ring Width - Millimeter:	37.64407
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	8997.16139557969
Maximum Operating RPM (Oil):	10496.688294843
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	2.83435
Outer Diameter - mm:	71.99249
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.6671
Outer Ring Width - Millimeter:	16.94434
Overall Width - in:	2.013
Overall Width - mm:	51.1302
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Static Load Rating:	3440
