Actual Product May Vary From Image

110670.00 LEE

Name: 110670.00 LEE
Brand: Leeson Electric
SKU: 110670.00 LEE
Price: 1,223.92 USD
Availability: OutOfStock

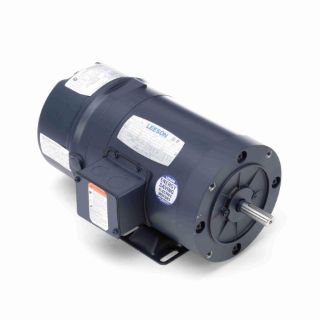

LEESON® 110670.00 Type TN Continuous Duty AC Motor, TENV Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110670.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,223.92

Qty:

Product Details

Brand Name

LEESON®

Type

Type TN Continuous Duty

Description

LEESON® AC Motor, Type TN Continuous Duty, Special Features: L KVA Code, 67 Power Factor, 3 hp, 208 to 230/460 VAC, 2 to 1.8/0.9 A, 60 Hz, 1800 rpm, 1 Speed, TENV, 56C Frame, 5/8 in Dia x 3-1/2 in L Shaft, Reversible, Service Factor: 1.15, Rigid Mount, 40 deg C, Insulation Class: Class B, Steel, 14.06 in L x 8.54 in W x 6.77 in H

Standards

CSA Certified | UL Listed

Features

L KVA Code, 67 Power Factor

Specifications

Amperage Rating:	2 to 1.8/0.9 A
Country of Origin:	US
Dimensions:	14.06 in L x 8.54 in W x 6.77 in H
Enclosure Type:	TENV
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	5/8 in Dia x 3-1/2 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
