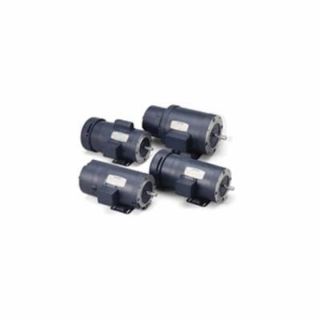

Actual Product May Vary From Image

110679.00 LEE

Name: 110679.00 LEE
Brand: Leeson Electric
SKU: 110679.00 LEE
Availability: OutOfStock

LEESON® 110679.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110679.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Brake Motors, Hoist Motors Application, 3 hp, 208 to 230/460 VAC, 3.6 to 3.8/1.9 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia x 3-1/2 in L Shaft, Reversible Rotation, 1.149 Service Factor, Rigid Mounting, 40 deg C, Insulation Class: Class B, Steel, 15.56 in L x 8.64 in W x 7.27 in H Dimensions

Application

For quick response stopping and holding application which may include conveyors, hoists and packaging equipment

Standards

CSA Certified | UL Listed

Features

Fail-safe position stop and holding brakes
Load stops automatically when power is turned OFF
Dual voltage brake coils

Specifications

Amperage Rating:	3.6 to 3.8/1.9 A
Application Type:	Brake Motors, Hoist Motors
Dimensions:	15.56 in L x 8.64 in W x 7.27 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia x 3-1/2 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
