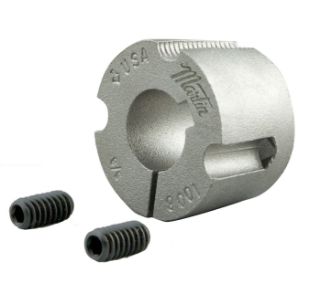

Actual Product May Vary From Image

1108 13/16 MSG

Name: 1108 13/16 MSG
Brand: Martin Sprocket & Gear
SKU: 1108 13/16 MSG
Price: 19.25 USD
Availability: OutOfStock

BUSHING TB

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 1108 13/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.25

Qty:

Product Details

Description

TB Bushings are designed for flush mounting and do not have a flange.

Features

For use with Taper Bushed parts. Tolerances meet or exceed industry standards. Precise machining and processes ensure consistent finish and high quality. Interchangeable with other manufacturers’ taper bushings.

Specifications

Barrel Diameter Large End:	1.511
Barrel Length Total:	0.875
Barrel Taper:	8 DEGREE
Bushing Bore Type:	STANDARD
Bushing Key Seat:	3/16 X 3/32
Bushing Number:	1108
Bushing Split:	Yes
Bushing Style:	TAPER BUSHING
Bushing/Cap Screw Thread:	UNC
Cap Screw Bolt Circle:	1.453
Cap Screw Size:	1/4-20 X 1/2
Dimensions UOM:	Inches
Flange Diameter:	NONE
Flange Split:	No
Flange Thickness:	NONE
Keyway Standard:	ANSI STANDARD
Length Thru Bore Total LTB of Bushing:	0.875
Material:	STEEL
Max Bore with Full Keyway:	1
Max Bore with Shallow Key:	1.125
Mounting Options:	STANDARD
MST Bushing type:	NONE
MST External Keyway size:	NONE
Number of Mounting Cap Screw:	2
Package Contents:	(1) INSTR SHEET IS-MTB-2 ,(2) SETSCREWS 16C32KSO
Set Screw Size:	1/4
Shaft Key Seat:	3/16 X 3/32
Stock Min Bore Size:	0.8125
Stocked Finished Bore:	0.8125
Storage Dimension Height:	1.0625
Storage Dimension Length:	2.0625
Storage Dimension Width:	2.0625
