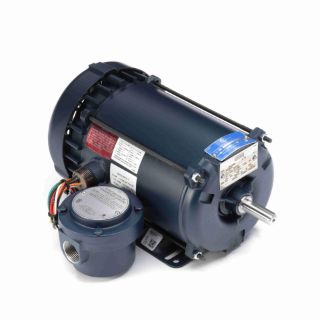

Actual Product May Vary From Image

110934.00 LEE

Name: 110934.00 LEE
Brand: Leeson Electric
SKU: 110934.00 LEE
Price: 224.33 USD
Availability: OutOfStock

LEESON® 110934.00 4-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPFC Enclosure, 0.75 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56H Frame, 1725 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110934.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$224.33

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, Special Features: Capacitor Start Motors, Explosion Proof AC Motors, 0.75 hp, 115/208 to 230 VAC, 11/5.4 to 5.5 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, EPFC, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 36 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 14.08 in L x 8.2 in W x 7.35 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Capacitor Start Motors, Explosion Proof AC Motors

Specifications

Amperage Rating:	11/5.4 to 5.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.08 in L x 8.2 in W x 7.35 in H
Enclosure Type:	EPFC
Frame:	56H
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	36 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
