110TAH10TDBP4 NAC

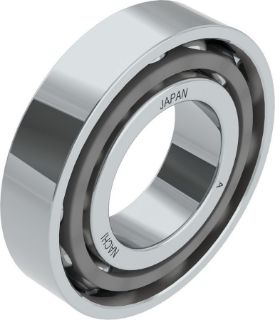

The Single Row Angular Contact Ball Bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The direction of the load through the balls forms the contact angle. This Super Precision Angular Contact Ball Bearing is tailored toward the Machine Tool Industry. It is Manufactured to very high quality standards (ISO: Class 4, ABEC7) and has a 30° contact angle which is great for high thrust loads in spindle applications. These bearings are generally used in pairs because axial forces are generated when radial loads are applied. This is a Duplex Set of bearings that have a medium preload arranged in a back-to-back configuration. These bearings are most commonly used for thrust loads in machine tool spindle applications. - Suitable for High Speeds - Lower Operating Temperature - Medium Preload is Standard - Outer Ring Guided Phenolic Resin Cage - High Quality Bearing Steel - Super honed raceways for high accuracy, improved lubrication and extended life - Normally stocked as back-to-back (DB) sets
