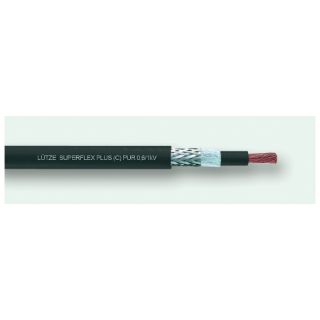

Picture of 111289 LST
Actual Product May Vary From Image

111289 LST

LUTZE SUPERFLEX® 111289 Plus M (C) Shielded High Flexing Motor Cable, 600/1000 V, (1) 8 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 111289
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$5.35

Product Details

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® High Flexing Motor Cable, Shielded, Series: Plus M (C), 600/1000 V, 1 Conductors, Stranded Bare Copper Conductor, 8 AWG Conductor, 0.354 in OD, 200 MOhm Resistance, TPE Insulation, PUR Jacket, Black Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications

Standards

CE Certified | IEC 60332-1 | Desina Compliant | DIN EN 60332-1-2 | DIN EN 60754-1 | DIN VDE 0295 Class 6 and IEC 60228 Class 6 | HF Certified | FT1 Certified | IEC 60754-1 | Low Capacitance Certified | NFPA 79 Article 12.21 | REACH Compliant | RoHS Compliant | UL 1581 Cable Flame | UL AWM 10587 | UL FT1 | UL Recognized | VDE 0482 322-1-2 | VW-1 Approved

Features

  • High flexing single conductor motor cable for continuous motion applications
  • Continuous flexing shielded cable suitable for machine and device construction for transport and conveyor technology
  • As motor supply conductor
  • For the most demanding flexing applications such as drag chains and linear flexing
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • Very good alternating bending strength
  • TPE insulation with very high break through resistance
  • PUR jacket for highest level of resistance against cooling fluids, greases and oils
  • Abrasion, high wear and rot resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Talc and silicone-free

Specifications

Conductor Size:8 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:IT
Insulation Material:TPE
Jacket Color:Black
Jacket Material:PUR
Number of Conductors:1
Outside Diameter:0.354 in
Resistance:200 MOhm
Series:Plus M (C)
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:600/1000 V
