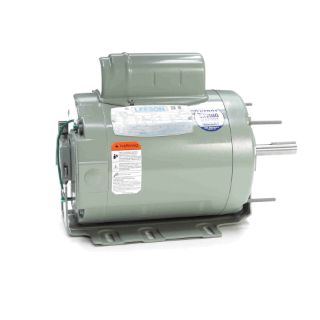

Actual Product May Vary From Image

111323.00 LEE

Name: 111323.00 LEE
Brand: Leeson Electric
SKU: 111323.00 LEE
Price: 589.97 USD
Availability: OutOfStock

LEESON® 111323.00 4-Pole AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 115/230 VAC, 60 Hz, 1 ph, 56HZ Frame, 1625 rpm Speed, Resilient Base/Extended Thru-Bolt Mount

Manufacturer: Leeson Electric

Manufacturer part number: 111323.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$589.97

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole

Description

LEESON® AC Motor, 4-Pole, Farm Duty Motors, Fan and Blower Motors, General Purpose HVAC Motors Application, 0.5 hp, 115/230 VAC, 5/2.5 A, 60 Hz Frequency, 1 ph, 1625 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56HZ Frame, 0.63 in Dia x 2.75 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 24 ft-lb Torque, Resilient Base/Extended Thru-Bolt Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 12.6 in L x 6.4 in W Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Permanent split capacitor designs offer low in-rush current
Two speed operation
Automatic overload protection
Corrosion resistant finish
Must be mounted in airstream for proper motor cooling
Epoxy painted
For shaft mounted fan applications

Specifications

Amperage Rating:	5/2.5 A
Application Type:	Farm Duty Motors, Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.6 in L x 6.4 in W
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56HZ
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base/Extended Thru-Bolt
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 2.75 in L
Speed:	1625 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
