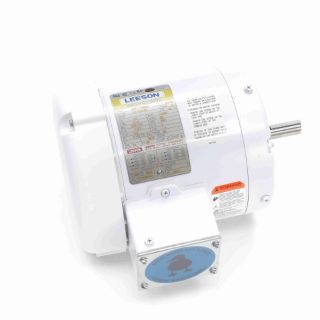

Actual Product May Vary From Image

112427.00 LEE

Name: 112427.00 LEE
Brand: Leeson Electric
SKU: 112427.00 LEE
Price: 636.15 USD
Availability: OutOfStock

LEESON® Washguard® 112427.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56 Frame, 1725 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 112427.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$636.15

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 0.5 hp, 208 to 230/460 VAC, 1.9 to 2/1 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 24 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 10.5 in L x 7.3 in H Dimensions

Application

Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

USDA approved epoxy painted motors
NEMA motors
Double lip contact seals and V-ring seals used for shaft seals

Specifications

Amperage Rating:	1.9 to 2/1 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.5 in L x 7.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
