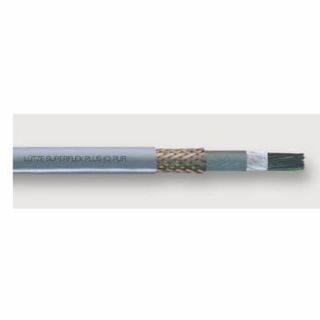

Picture of 113301 LST
Actual Product May Vary From Image

113301 LST

LUTZE 113301 Shielded Control Cable, 300 VAC, (5) 20 AWG Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 113301
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

LUTZE

Type

Shielded

Description

LUTZE Control Cable, Shielded, 300 VAC, 5 Conductors, Bare Copper Conductor, 20 AWG Conductor, 0.295 in OD, TPE Insulation, PUR Jacket, RAL 7001 Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For machine and device construction, transport and conveyor technology and HVAC technology

Standards

CE Marked | cURus Certified | IEC 60332-1-2 | DIN EN 60332-1-2 | VDE 0482 322-1-2 | RoHS Compliant | UL 1581 | UL FT1

Features

  • Reduced friction due to very smooth conductor insulation (hgi) for high mechanical loads
  • High active and passive interference resistance (EMC)
  • Braided shield optimized for continuous flexing applications
  • Low capacitance, very good electrical properties
  • Flame-retardant, self-extinguishing
  • Halogen-free, no corrosive gases
  • Very good flexing strength
  • Low adhesion, abrasion-resistant, tear resistant
  • Hydrolysis-resistant, microbe-resistant and rot-resistant
  • Weathering, ozone and UV resistant (normal lighting conditions)
  • Good resistance to wear and salt water
  • Excellent coolant and lubricant resistance
  • Largely resistant to oils, greases, alcohol-free benzines and kerosene
  • 10xD minimum bending radius moving
  • 6xD fixed minimum bending radius
  • 103 pF/m wire-shield operating capacitance

Specifications

Conductor Size:20 AWG
Conductor Type:Bare Copper
Insulation Material:TPE
Jacket Color:RAL 7001 Gray
Jacket Material:PUR
Number of Conductors:5
Outside Diameter:0.295 in
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 VAC
