Picture of 113443 LST
Actual Product May Vary From Image

113443 LST

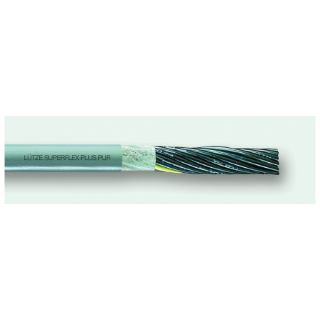

LUTZE SUPERFLEX® 113443 Plus N Unshielded Flexible Control Cable, 300 V, (5) 21 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 113443
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

SUPERFLEX®

Type

Unshielded

Description

LUTZE SUPERFLEX® Flexible Control Cable, Unshielded, Series: Plus N, 300 V, 5 Conductors, Stranded Bare Copper Conductor, 21 AWG Conductor, 0.228 in OD, 1000 MOhm Resistance, Special TPE Insulation, PUR Jacket, Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Standards

CE Certified | DIN EN 60332-1-2 | DIN EN 60754-1 | DIN VDE 0295 Class 6 | FT1 Certified | HF Certified | IEC 60332-1 | IEC 60754-1 | IEC 60228 Class 6 | Low Capacitance Certified | NFPA 79, Article 12.9 | Oil Res II | REACH Compliant | RoHS Compliant | UL Recognized | UL VW-1 | UL AWM Style 20233

Features

  • High flexing control cable for continuous motion applications
  • Multi-conductor cable for robots, handling equipment, machine tools, drag chains and applications with extremely rough operating conditions
  • For the most demanding flexing applications such as drag chains and linear flexing
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • Extremely small cable ODs due to special TPE High Glide insulation compliant with UL
  • Reduced friction
  • PUR jacket
  • Highest level of resistance against cooling fluids, greases and oils
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Non-wicking fillers
  • Talc and silicone-free

Specifications

Conductor Size:21 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:Special TPE
Jacket Color:Gray
Jacket Material:PUR
Number of Conductors:5
Outside Diameter:0.228 in
Resistance:1000 MOhm
Series:Plus N
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
