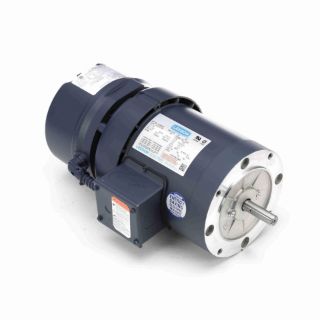

Actual Product May Vary From Image

114160.00 LEE

Name: 114160.00 LEE
Brand: Leeson Electric
SKU: 114160.00 LEE
Price: 1,412.73 USD
Availability: OutOfStock

LEESON® 114160.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 114160.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,412.73

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Special Features: Blue Enamel Paint, K KVA Code, 65 Power Factor, 3 hp, 208 to 230/460 VAC, 2.8/1.4 A, 60 Hz, 1800 rpm, 1 Speed, Totally Enclosed Fan Cooled, 56C Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.149, Ball Bearing, 134 ft-oz, Round Mount, 40 deg C, Insulation Class: Class B, Steel, 15.06 in L

Standards

CSA Certified | UL Listed

Features

Blue Enamel Paint, K KVA Code, 65 Power Factor

Specifications

Amperage Rating:	2.8/1.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	15.06 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	134 ft-oz
Voltage Rating:	208 to 230/460 VAC
