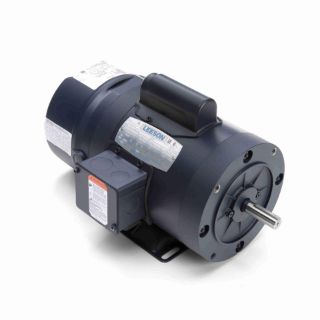

Actual Product May Vary From Image

114165.00 LEE

Name: 114165.00 LEE
Brand: Leeson Electric
SKU: 114165.00 LEE
Price: 1,141.57 USD
Availability: OutOfStock

LEESON® 114165.00 Type CN Continuous Duty AC Motor, TENV Enclosure, 1 hp, 115/208 to 230 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 114165.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,141.57

Qty:

Product Details

Brand Name

LEESON®

Type

Type CN Continuous Duty

Description

LEESON® AC Motor, Type CN Continuous Duty, Brake Motors, Hoist Motors Application, 1 hp, 115/208 to 230 VAC, 5.8/2.9 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, TENV Enclosure, 56C Frame, 5/8 in Dia Shaft, CCW Rotation, 1.149 Service Factor, Ball Bearing, 61.5 ft-oz Torque, Rigid Mounting, 40 deg C, Insulation Class: Class B, Steel, 14.06 in L x 8.64 in W x 9.02 in H Dimensions

Application

For quick response stopping and holding application which may include conveyors, hoists and packaging equipment

Standards

CSA Certified | UL Listed

Features

Fail-safe position stop and holding brakes
Load stops automatically when power is turned OFF
Dual voltage brake coils

Specifications

Amperage Rating:	5.8/2.9 A
Application Type:	Brake Motors, Hoist Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.06 in L x 8.64 in W x 9.02 in H
Enclosure Type:	TENV
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class B
Material:	Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	CCW
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	61.5 ft-oz
Voltage Rating:	115/208 to 230 VAC
