114167.00 LEE

Name: 114167.00 LEE
Brand: Leeson Electric
SKU: 114167.00 LEE
Price: 1,712.99 USD
Availability: OutOfStock

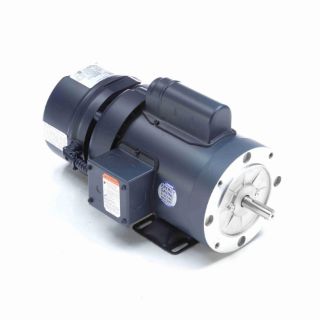

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

114167.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,712.99 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 61KM84

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Brake Motors Application, Capacitor Start Motors, Washdown Duty Motors Special Features, 0.75 hp, 115/208 to 230 VAC, 10.8/5.4 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 35.95 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 16.23 in L Dimensions

Application

Conveyors, Hoists, Packaging Equipment, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors, Washdown Duty Motors

Specifications

Amperage Rating:	10.8/5.4 A
Application Type:	Brake Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16.23 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	35.95 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
