Actual Product May Vary From Image

114616.00 LEE

Name: 114616.00 LEE
Brand: Leeson Electric
SKU: 114616.00 LEE
Availability: OutOfStock

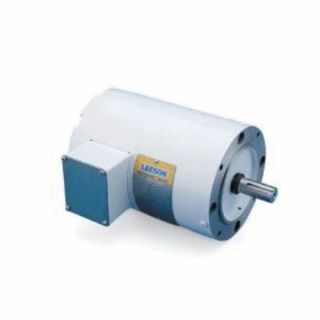

LEESON® 114616.00 Type AC Continuous Duty AC Motor, TENV Enclosure, 2 hp, 208 to 230/460 VAC, 50/60 Hz, 56C Frame, 1800 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 114616.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type AC Continuous Duty

Description

LEESON® AC Motor, Type AC Continuous Duty, Fan & Blower Motors Application, C Face Less Base, 81.5% Full Load Efficiency Special Features, 2 hp, 208 to 230/460 VAC, 6.2 A, 50/60 Hz Frequency, 1800 rpm Speed, 1 Speed, TENV Enclosure, 56C Frame, 5/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 12.69 in L Dimensions

Application

For chemical processing, pharmaceutical plants and the beverage and brewing industries

Standards

CE Marked | CSA File No. LR2025 | UL File No. E49747 | USDA Approved

Features

C Face Less Base, 81.5% Full Load Efficiency

Specifications

Amperage Rating:	6.2 A
Application Type:	Fan & Blower Motors
Bearing Type:	Ball
Dimensions:	12.69 in L
Enclosure Type:	TENV
Frame:	56C
Frequency Rating:	50/60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
