Actual Product May Vary From Image

114626.00 LEE

Name: 114626.00 LEE
Brand: Leeson Electric
SKU: 114626.00 LEE
Price: 1,168.20 USD
Availability: OutOfStock

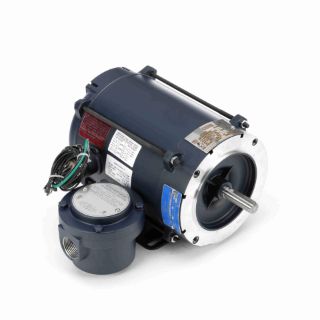

LEESON® 114626.00 4-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPNV Enclosure, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1725 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 114626.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,168.20

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, Explosion Proof AC Motors Special Features, 0.33 hp, 208 to 230/460 VAC, 1.2 to 1.2/0.6 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, EPNV Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 1 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.97 in L x 7.77 in W x 6.85 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	1.2 to 1.2/0.6 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.97 in L x 7.77 in W x 6.85 in H
Enclosure Type:	EPNV
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	1 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
