115021A01F060 WOO

Name: 115021A01F060 WOO
Brand: Molex/Woodhead
SKU: 115021A01F060 WOO
Price: 81.86 USD
Availability: OutOfStock

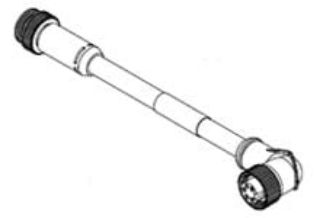

Brad® Mini-Change® 115021A01F060 Double Ended Size A Cordset, 7/8-16 UN Straight Male x 90 deg Female Connector, 6 ft L Cable, 5 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 115021A01F060

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$81.86

Qty:

Product Details

Brand Name

Brad®

Type

Double Ended Size A

Description

Brad® Mini-Change® Cordset, Double Ended Size A, Straight Male x 90 deg Female Connector, 7/8-16 UN Connector, PVC, STOOW Cable, 6 ft Cable Length, PVC Cable, 5 Pole, Single Keyway, 600 VAC/VDC, 8 A, Black/Blue/Green/Orange/Red/White Wire Pin Colors, NEMA 6P/IP68

Standards

UL File No. E46237 | CSA LR6837

Features

16 AWG yellow cable
Oil resistant PVC jacket
Low resistance contact design with gold/palladium nickel plating
0.5 in Dia cable
Zinc die cast with black epoxy coat
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	8 A
Cable Length:	6 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	7/8-16 UN
Connector Type:	Straight Male x 90 deg Female
Country of Origin:	US
Keyway:	Single
NEMA Rating:	NEMA 6P/IP68
Number of Poles:	5
Voltage Rating:	600 VAC/VDC
Wire Pin Colors:	Black/Blue/Green/Orange/Red/White
