Simulates 8 faults that can be used individually, or in a combination, cross battery, resistive 5 kohm load to ground, resistive 500 ohm short, two balanced bridge taps, 60 ohm series resistance fault, 60 Hz power influence, high frequency noise

1910 ft cable length

Battery operated

Ruggedized case

Convenient test lead connections

Three access locations in the span for custom faults

Train users on real twisted-pair faults

Test multiple test set functions such as RFL, TDR, power influence, stress, leakage, resistance, impulse noise and others

Verify results from the field in a controlled environment

Demonstrates how noise increases with pair imbalances

Show differences between shorts, bridge taps, series faults and opens with a TDR

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

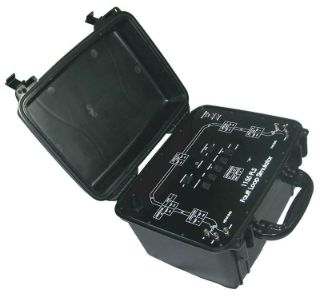

1155-7001 TPO

Product Details

Brand Name

Description

Standards

Features

Specifications
