11675-3 BSF

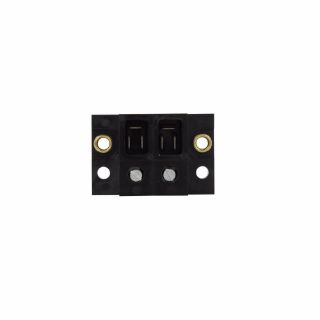

Bussmann Magnum® 11675-3 Quick-Connect Power Distribution Block, 250 VAC/VDC, 40 A, 3 Poles, 14 to 8 AWG Wire
Manufacturer: Bussmann
Manufacturer part number: 11675-3
Availability: Expected Leadtime 43 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Quick-Connect

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Bussmann Magnum® Power Distribution Block, Quick-Connect, Series: 11675, 250 VAC/VDC, 40 A, 3 Pole, 1 Primary Connections/Pole, 3 Secondary Connection/Pole, 14 to 8 AWG Wire, 10 kA Short Circuit Current Rating, 2.66 in L x 1.03 in W x 1.37 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

CE Certified | CSA File No. LR15364 | RoHS Compliant | UL 508A/File No. E62622 | UL Guide XCFR2

Features

  • Screw connection line side, (3) 1/4 in quick connect load side
  • 14 to 8 AWG copper wire

Specifications

Amperage Rating:40 A
Country of Origin:MX
Dimensions:2.66 in L x 1.03 in W x 1.37 in H
Number of Poles:3
Primary Connections/Pole:1
Secondary Connection/Pole:3
Series:11675
Short Circuit Current Rating:10 kA
Voltage Rating:250 VAC/VDC
Wire Size:14 to 8 AWG
