116751.00 LEE

Name: 116751.00 LEE
Brand: Leeson Electric
SKU: 116751.00 LEE
Price: 877.24 USD
Availability: OutOfStock

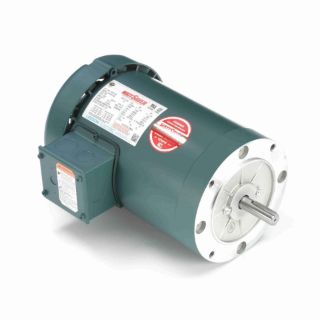

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

116751.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$877.24 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 773N49

Description

LEESON® Ultimate e® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, 2 hp, 230/460 VAC, 4.8/2.4 A, 60 Hz Frequency, 3 ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.98 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Continuous duty cycle design allows maximum operation at the rated power specifications
Class B or F Insulation protects motor for a maximum temperature rating
Permanently lubricated, double-sealed bearings extend the lifetime of the motor

Specifications

Amperage Rating:	4.8/2.4 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.98 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3490 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
