117172 LST

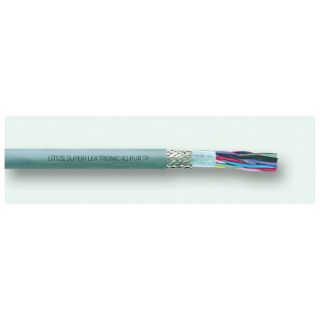

Picture of 117172 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
117172
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3.17 / EA

Description

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® Electronic Cable, Shielded, Series: TRONIC, 300 V, 4 Pairs Conductors, Stranded Bare Copper Conductor, 24 AWG Conductor, 0.268 in OD, 1000 MOhm Resistance, TPE Insulation, PUR Jacket, Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, robots, handling equipment, machine tools, drag chains and applications with extremely rough operating conditions, the most demanding flexing applications such as drag chains and linear flexing, In dry and damp rooms, machine and device construction, transport, conveyor technology, heating, climate technology, industrial environments with high EMI potential in machine, plant and device construction

Standards

Article 12.9 | AWM 20549 | CE Certified | DIN 47100/EN 50363-10-2/60332-2-2/60754-1 | HF Certified | IEC 60332-2-2/60754-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 | UL 2556-300h | UL FT2 | UL Horizontal Flame Test

Features

  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • PUR jacket and TPE conductor insulation for use in extremely harsh operating conditions
  • Highest level of resistance against cooling fluids, greases and oils
  • Low adhesion, abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • Dry, damp and wet conditions
  • UV-resistant
  • Non-wicking fillers
  • Talc and silicone-free
  • High active and passive interference resistance (EMC)
  • High crosstalk attenuation through twisted pairs
  • Braided shield optimized for continuous flexing applications
  • Low capacitance, very good electrical properties
  • Flame retardant, self-extinguishing
  • Halogen-free, no corrosive gases
  • Very good flexing strength
  • Good resistance to wear and salt water
  • Excellent coolant and lubricant resistance
  • Largely-resistant to oils, greases, alcohol-free benzenes and kerosene

Specifications

Conductor Size:24 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:TPE
Jacket Color:Gray
Jacket Material:PUR
Number of Conductors:4 Pairs
Outside Diameter:0.268 in
Resistance:1000 MOhm
Series:TRONIC
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
