Actual Product May Vary From Image

117177 LST

Name: 117177 LST
Brand: Lutze
SKU: 117177 LST
Price: 3.68 USD
Availability: OutOfStock

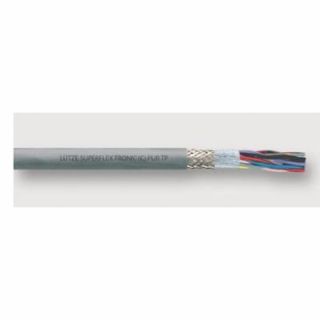

LUTZE 117177 Shielded Electronic Cable, 300 VAC, (6) 24 AWG Bare Copper Conductor

Manufacturer: Lutze

Manufacturer part number: 117177

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3.68

Qty:

Product Details

Brand Name

LUTZE

Type

Shielded

Description

LUTZE Electronic Cable, Shielded, 300 VAC, 6 Conductors, Bare Copper Conductor, 24 AWG Conductor, 0.319 in OD, TPE Insulation, PUR Jacket, RAL 7001 Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Standards

CE Marked | cURus Certified | IEC 60332-1 | 60754-1 | DIN EN 60332-1-2 | 60811-404 | UL 1581 | VW-1 | FT1 | RoHS Compliant

Features

High active and passive interference resistance (EMC)
High crosstalk attenuation through twisted pairs
Braided shield optimized for continuous flexing applications
Low capacitance, very good electrical properties
Flame-retardant, self-extinguishing
Halogen-free, no corrosive gases
Very good flexing strength
Low adhesion, abrasion-resistant, tear resistant
Hydrolysis-resistant, microbe-resistant and rot-resistant
Good resistance to wear and salt water
Excellent coolant and lubricant resistance
Largely resistant to oils, greases, alcohol-free benzines and kerosene
12xD minimum bending radius moving
6xD fixed minimum bending radius

Specifications

Conductor Size:	24 AWG
Conductor Type:	Bare Copper
Insulation Material:	TPE
Jacket Color:	RAL 7001 Gray
Jacket Material:	PUR
Number of Conductors:	6
Outside Diameter:	0.319 in
Temperature Rating:	-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:	300 VAC
