Actual Product May Vary From Image

117281.00 LEE

Name: 117281.00 LEE
Brand: Leeson Electric
SKU: 117281.00 LEE
Price: 1,379.38 USD
Availability: OutOfStock

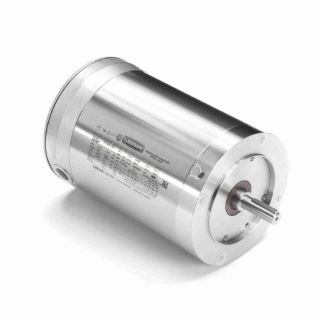

LEESON® Washguard® 117281.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 1 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 3450 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 117281.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,379.38

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, Washdown Duty Motors Special Features, 1 hp, 230/460 VAC, 2.6/1.3 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 24 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 12.22 in L Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:	2.6/1.3 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.22 in L
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
