119420.00 LEE

Name: 119420.00 LEE
Brand: Leeson Electric
SKU: 119420.00 LEE
Availability: OutOfStock

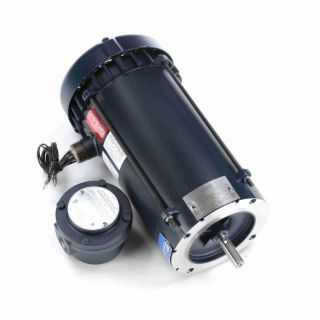

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

119420.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, General Purpose AC Motors Application, Explosion Proof AC Motors Special Features, 1 hp, 230/460 VAC, 3.3/1.65 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, EPFC Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 15.94 in L x 8.2 in W x 7.11 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	3.3/1.65 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	15.94 in L x 8.2 in W x 7.11 in H
Enclosure Type:	EPFC
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
