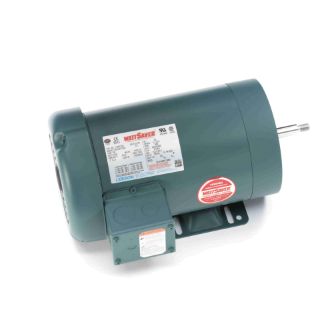

Picture of 119457.00 LEE
Actual Product May Vary From Image

119457.00 LEE

LEESON® 119457.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56HJ Frame, 3490 rpm Speed, C-Face/Footed/Rigid Base/Flange Mount
Manufacturer: Leeson Electric
Manufacturer part number: 119457.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$929.23

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Explosion Proof AC Motors Special Features, 3 hp, 208 to 230/460 VAC, 8.8 to 8/4 A, 60 Hz Frequency, 3 ph ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56HJ Frame, 0.63 in Dia x 2.44 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Footed/Rigid Base/Flange Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 14.16 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:8.8 to 8/4 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:14.16 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56HJ
Frequency Rating:60 Hz
Horsepower:3 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face/Footed/Rigid Base/Flange
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 2.44 in L
Speed:3490 rpm
Temperature Rating:40 deg C
Torque Rating:4.5 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
