11S FLNG 3-7/8 1X1/4 KW LOV

Product Details

Manufacturer:
Manufacturer part number:
68514436199
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Lovejoy®

Type

Type S Finished Bore

Description

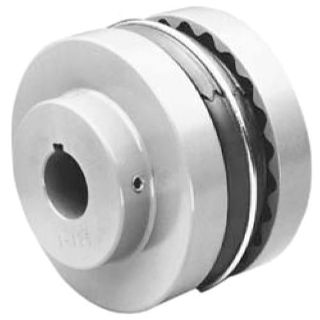

Lovejoy® S-Flex Endurance™ Coupling Flange, Type S Finished Bore, 11S Coupling, 3-7/8 in Bore, 5-1/4 in Diameter Hub, 1.13 in Hub Length, 1 x 1/4 in Keyway, 3600 rpm Maximum, 3.44 in Length Through Bore, 1/2-13 Screw, Cast Iron

Standards

ANSI/AGMA 9002 | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • S flanges are made of high strength cast iron and are bored to size for a slip fit on standard shafts
  • The S-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:3-7/8 in
Country of Origin:US
Coupling Size:11S
Hub Diameter:5-1/4 in
Hub Length:1.13 in
Keyway Size:1 x 1/4 in
Length Through Bore:3.44 in
Material:Cast Iron
Maximum Speed:3600 rpm
Screw Size:1/2-13
