11S FLNG 38MM 10X3.3MM KW LOV

Product Details

Manufacturer:
Manufacturer part number:
68514459889
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Lovejoy®

Type

Type S Finished Bore

Description

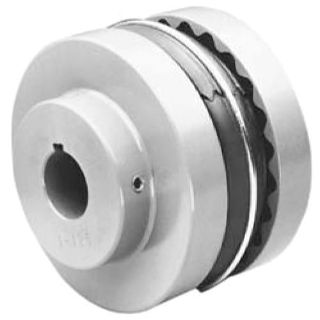

Lovejoy® S-Flex Endurance™ Coupling Flange, Type S Finished Bore, 11S Coupling, 38 mm Bore, 133.35 mm Diameter Hub, 28.7 mm Hub Length, 10 x 3.3 mm Keyway, 3600 rpm Maximum, 87.38 mm Length Through Bore, 1/2-13 Screw, Cast Iron

Standards

ANSI/AGMA 9112 | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • S flanges are made of high strength cast iron and are bored to size for a slip fit on standard shafts
  • The S-type coupling consists of two flanges and one sleeve

Specifications

Bore Diameter:38 mm
Country of Origin:US
Coupling Size:11S
Hub Diameter:133.35 mm
Hub Length:28.7 mm
Keyway Size:10 x 3.3 mm
Length Through Bore:87.38 mm
Material:Cast Iron
Maximum Speed:3600 rpm
Screw Size:1/2-13
