Actual Product May Vary From Image

1201-TVH FAG

Name: 1201-TVH FAG
Brand: INA
SKU: 1201-TVH FAG
Price: 53.24 USD
Availability: OutOfStock

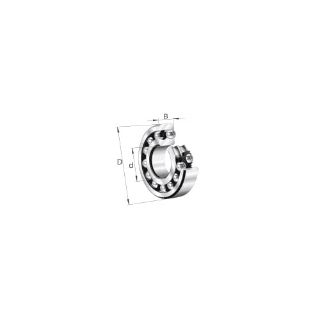

FAG 1201-TVH 12 Series Self-Aligning Ball Bearing, 12 mm Dia Bore, 32 mm OD, 2 Rows, 10 mm W, 5700 N Dynamic/1250 N Static/78 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 1201-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$53.24

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 12 Series, 12 mm Bore Dia, 32 mm Outside Dia, 2 Rows, 10 mm W, Open Closure, 5700 N Dynamic/1250 N Static/78 N Fatigue, Steel Bearing, Polyamide 66 Cage, 28000 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bearing Material:	Steel
Bore Diameter:	12 mm
Cage Material:	Polyamide 66
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	5700 N Dynamic/1250 N Static/78 N Fatigue
Maximum Speed:	28000 rpm
Number of Rows:	2
Outside Diameter:	32 mm
Series:	12 Series
Temperature Rating:	120 deg C
Width:	10 mm
