1203 C3 BLT

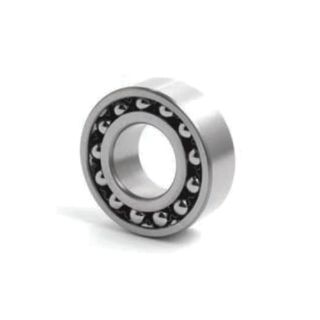

Self Aligning Ball Bearing, 17mm Bore Dia., 40mm Outside Dia., 12mm Width
Manufacturer: Bearings Limited
Manufacturer part number: 1203 C3
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$17.12

Product Details

Brand Name

TRITAN

Description

TRITAN Self Aligning Ball Bearings Self-Aligning Ball Bearings have two rows of balls and are constructed with the inner ring and ball assembly contained within an outer ring which has a spherical raceway for self-aligning. Very loose conformity between balls and outer ring keeps friction and frictional heat at low levels and results in excellent high-speed performance. The reduced friction can also reduce noise and vibration levels, and lead to extended bearing life and maintenance intervals. They are particularly suitable for light duty applications where misalignment occurs from errors in mounting and/or from shaft deflection ~~ TRITAN manufactures a wide variety of ball & roller bearings in ISO certified factories to ensure consistent quality, and has been supplying its products to the US market for over 30 years.

Specifications

Bore Diameter:17mm
Lubrication:Light Oil Preservative
Material:52100 Steel
Operating Temperature Range:-20 to +390 °F
Outside Diameter:40mm
Weight (Lbs):0.17
Width:12mm
