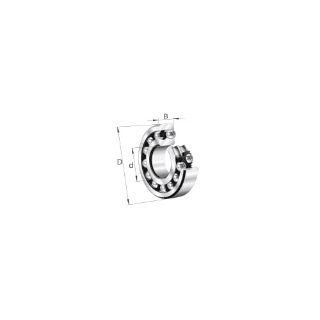

Actual Product May Vary From Image

1203-TVH FAG

Name: 1203-TVH FAG
Brand: INA
SKU: 1203-TVH FAG
Price: 54.11 USD
Availability: OutOfStock

FAG 1203-TVH 12 Series Self-Aligning Ball Bearing, 17 mm Dia Bore, 40 mm OD, 2 Rows, 12 mm W, 8100 N Dynamic/2000 N Static/124 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 1203-TVH

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$54.11

Qty:

Product Details

Brand Name

FAG

Description

FAG Self-Aligning Ball Bearing, Series: 12 Series, 17 mm Bore Dia, 40 mm Outside Dia, 2 Rows, 12 mm W, Open Closure, 8100 N Dynamic/2000 N Static/124 N Fatigue, Steel Bearing, Polyamide 66 Cage, 21800 rpm Maximum, 120 deg C, Uncoated

Standards

Meets to DIN 630

Features

Solid cage made from glass fiber reinforced polyamide 66

Specifications

Bearing Material:	Steel
Bore Diameter:	17 mm
Cage Material:	Polyamide 66
Closure Type:	Open
Finish:	Uncoated
Load Capacity:	8100 N Dynamic/2000 N Static/124 N Fatigue
Maximum Speed:	21800 rpm
Number of Rows:	2
Outside Diameter:	40 mm
Series:	12 Series
Temperature Rating:	120 deg C
Width:	12 mm
