1205TN/C3 BLT

Product Details

Manufacturer:
Manufacturer part number:
1205TN/C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

TRITAN®

Type

Light Duty

Description

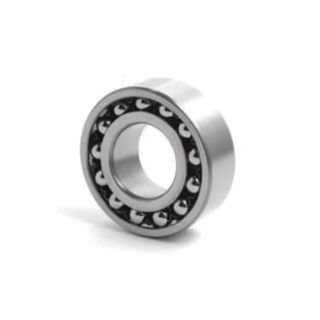

Self-Aligning Ball Bearings have two rows of balls and are constructed with the inner ring and ball assembly contained within an outer ring which has a spherical raceway for self-aligning. Very loose conformity between balls and outer ring keeps friction and frictional heat at low levels and results in excellent high speed performance. The reduced friction can also reduce noise and vibration levels and lead to extended bearing life and maintenance intervals. They are particularly suitable for light duty applications where misalignment occurs from errors in mounting and/or from shaft deflection.
TRITAN® Self-Aligning Ball Bearing, Light Duty, 25 mm Bore, 52 mm OD, 2 Rows, 15 mm Width, 2743 lb Load, 52100 Steel Bearing, Polyamide Cage, 16000 rpm Grease/13000 rpm Oil Maximum

Standards

AFBMA Standard

Features

2743 lb dynamic/517 lb static load

Specifications

Bearing Material:52100 Steel
Bore Diameter:25 mm
Cage Material:Polyamide
Load Capacity:2743 lb
Maximum Speed:16000 rpm Grease/13000 rpm Oil
Number of Rows:2
Outside Diameter:52 mm
Width:15 mm
