Actual Product May Vary From Image

120A15 MSG

Name: 120A15 MSG
Brand: Martin Sprocket & Gear
SKU: 120A15 MSG
Price: 161.55 USD
Availability: OutOfStock

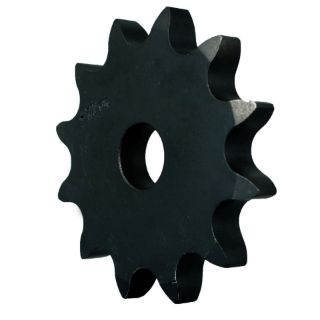

Martin 120A15 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 1.25 to 5.527 in Dia Bore, 7.957 in OD, #120 Chain, 15 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 120A15

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$161.55

Qty:

Product Details

Brand Name

Martin

Type

Type A Single Strand Solid Reboreable

Description

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 1.25 to 5.527 in Bore, 7.957 in OD, #120 Chain, 15 Teeth, 1-1/2 in Pitch, 7.2146 in Pitch Diameter, 0.924 in Length Through Bore, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Manufactured of high carbon steel

Specifications

Bore Diameter:	1.25 to 5.527 in
Chain Size:	#120
Length Through Bore:	0.924 in
Material:	Steel
Number of Teeth:	15
Outside Diameter:	7.957 in
Pitch:	1-1/2 in
Pitch Diameter:	7.2146 in

Resources

Video
