Actual Product May Vary From Image

120E23H MSG

Name: 120E23H MSG
Brand: Martin Sprocket & Gear
SKU: 120E23H MSG
Price: 479.44 USD
Availability: OutOfStock

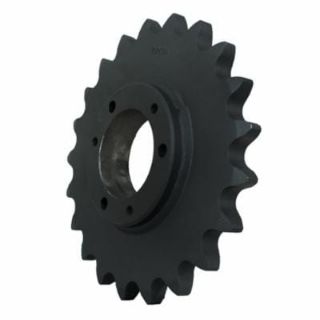

Martin Saber Tooth® 120E23H QD Bushed Type B1 Single Pitch Roller Chain Sprocket With Hardened Teeth, 11.813 in OD, #120 Chain, 23 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 120E23H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$479.44

Qty:

Product Details

Brand Name

Martin

Type

QD Bushed Type B1

Description

Martin Saber Tooth® sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, QD Bushed Type B1, 11.813 in Outside Dia, #120 Chain, 23 Teeth, 1-1/2 in Pitch, 11.016 in, 6-1/4 in Hub Dia, 2-5/8 in Length Through Bore, Type E QD® Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	Type E QD®
Chain Size:	#120
Country of Origin:	US
Hub Diameter:	6-1/4 in
Length Through Bore:	2-5/8 in
Material:	Steel
Number of Teeth:	23
Outside Diameter:	11.813 in
Pitch:	1-1/2 in
Pitch Diameter:	11.016 in
