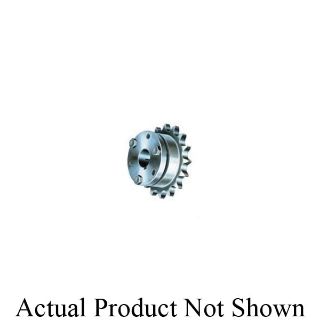

Actual Product May Vary From Image

120J80 BRN

Name: 120J80 BRN
Brand: Regal Rexnord
SKU: 120J80 BRN
Availability: OutOfStock

Browning® 3332483 Single Strand Roller Chain Sprocket, 1-1/2 in Dia Bore, 39.095 in OD, #120 Chain, 80 Teeth, 1-1/2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3332483

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 1-1/2 in Bore Dia, 39.095 in Outside Dia, #120 Chain, 80 Teeth, 1-1/2 in Pitch, 38.207 in, 7-1/4 in Hub Dia, 4.51 in Length Through Bore, Type QD®-1 Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Reverse mounting possible
For use with 1-1/2 in pitch ANSI chain

Specifications

Bore Diameter:	1-1/2 in
Bushing Type:	Type QD®-1
Chain Size:	#120
Country of Origin:	CN
Hub Diameter:	7-1/4 in
Length Through Bore:	4.51 in
Material:	Steel
Number of Teeth:	80
Outside Diameter:	39.095 in
Pitch:	1-1/2 in
Pitch Diameter:	38.207 in
