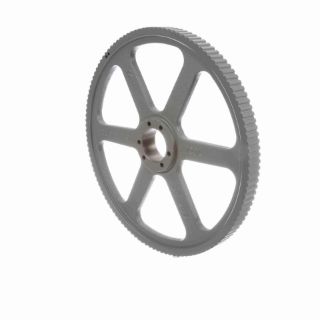

Actual Product May Vary From Image

120L075SD BRN

Name: 120L075SD BRN
Brand: Regal Rexnord
SKU: 120L075SD BRN
Availability: OutOfStock

Browning® Gearbelt® 3513330 Arm Type C Synchronous Timing Pulley, 1/2 to 2 in QD® Bore, 14.294 in OD, 120 Grooves, 14.324 in Dia Pitch, 1 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3513330

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Arm Type C

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Arm Type C, QD® Bore, 1/2 to 2 in Bore Dia, 14.294 in Outside Dia, 14.324 in, 120 Grooves, 3/8 in Pitch, 1 in Face Width, SD Bushing, 1.98125 in Overall Length, For Use With: 3/4 in W Type L075 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range
Without Flange

Specifications

Bore Diameter:	1/2 to 2 in
Bore Type:	QD®
Bushing Type:	SD
Country of Origin:	US
Face Width:	1 in
Number of Grooves:	120
Outside Diameter:	14.294 in
Overall Length:	1.98125 in
Pitch:	3/8 in
Pitch Diameter:	14.324 in
Suitable For Use With:	3/4 in W Type L075 Belt
