121181.00 LEE

Name: 121181.00 LEE
Brand: Leeson Electric
SKU: 121181.00 LEE
Price: 1,100.10 USD
Availability: OutOfStock

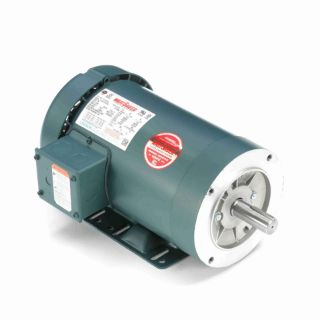

LEESON® 121181.00 Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208 to 230/460 VAC, 50/60 Hz, 3 Phase, 145TC Frame, 1800 rpm Speed, Foot Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121181.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,100.10

Qty:

Product Details

Brand Name

LEESON®

Type

Continuous Duty

Description

LEESON® AC Motor, Continuous Duty, 2 hp, 208 to 230/460 VAC, 5.8 A, 50/60 Hz, 3 ph, 1800 rpm, 1 Speed, Totally Enclosed Fan Cooled, 145TC Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Foot Rigid Mount, Insulation Class: Class F, Rolled Steel, 14.26 in L x 8.64 in W x 7.32 in H

Standards

CSA Certified | UL Listed | UL Recognized

Features

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
Continuous duty cycleÂ designÂ allows maximum operation at the rated power
Class B or F Insulation protects motor for a maximum temperature rating
Permanently lubricated, double-sealed bearings extend the lifetime of the motor

Specifications

Amperage Rating:	5.8 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.26 in L x 8.64 in W x 7.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	50/60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Foot Rigid
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	7/8 in Dia
Speed:	1800 rpm
Voltage Rating:	208 to 230/460 VAC
