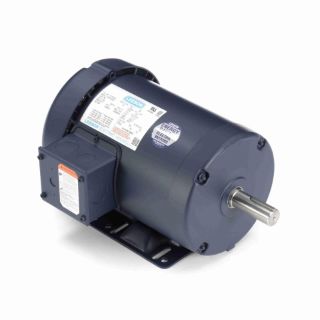

Actual Product May Vary From Image

121199.00 LEE

Name: 121199.00 LEE
Brand: Leeson Electric
SKU: 121199.00 LEE
Price: 1,225.14 USD
Availability: OutOfStock

LEESON® Ultimate e® 121199.00 8-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.75 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 850 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121199.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,225.14

Qty:

Product Details

Brand Name

LEESON®

Type

8-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 8-Pole Continuous Duty, General Purpose AC Motors Application, 0.75 hp, 208 to 230/460 VAC, 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 850 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.62 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.68 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact efficient ratings
Inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	3.2/1.6 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.68 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145T
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	850 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.62 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
