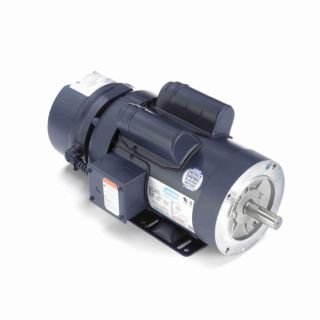

Actual Product May Vary From Image

121815.00 LEE

Name: 121815.00 LEE
Brand: Leeson Electric
SKU: 121815.00 LEE
Price: 1,816.98 USD
Availability: OutOfStock

LEESON® 121815.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 145TC Frame, 1740 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121815.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,816.98

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Brake Motors Application, Capacitor Start Motors, Washdown Duty Motors Special Features, 1.5 hp, 115/208 to 230 VAC, 17.2/8.8 to 8.6 A, 60 Hz Frequency, 1 ph ph, 1740 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 4.48 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 18.23 in L Dimensions

Application

Conveyors, Hoists, Packaging Equipment, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors, Washdown Duty Motors

Specifications

Amperage Rating:	17.2/8.8 to 8.6 A
Application Type:	Brake Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	18.23 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1740 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.48 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
