121875.00 LEE

Name: 121875.00 LEE
Brand: Leeson Electric
SKU: 121875.00 LEE
Price: 1,813.94 USD
Availability: OutOfStock

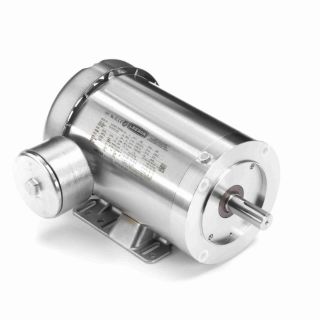

LEESON® Washguard® 121875.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 145TC Frame, 1750 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121875.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,813.94

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Washdown Duty Motors Special Features, 1.5 hp, 230/460 VAC, 4.8/2.4 A, 60 Hz Frequency, 3 ph ph, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 12.75 in L x 7.2 in H Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:	4.8/2.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.75 in L x 7.2 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145TC
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 2.25 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
