Actual Product May Vary From Image

121877.00 LEE

Name: 121877.00 LEE
Brand: Leeson Electric
SKU: 121877.00 LEE
Price: 2,129.99 USD
Availability: OutOfStock

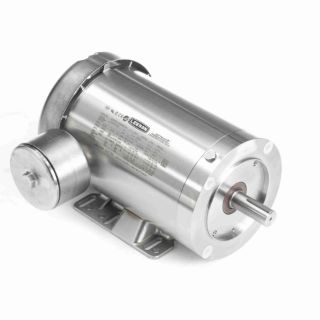

LEESON® 121877.00 Type AC Continuous Duty AC Motor, TENV Enclosure, 2 hp, 230/460 VAC, 50/60 Hz, 145TC Frame, 1800 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 121877.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,129.99

Qty:

Product Details

Brand Name

LEESON®

Type

Type AC Continuous Duty

Description

LEESON® AC Motor, Type AC Continuous Duty, Special Features: C Face With Base, 86.5% Full Load Efficiency, 2 hp, 230/460 VAC, 5.8 A, 50/60 Hz, 1800 rpm, 1 Speed, TENV, 145TC Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1.25, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 13-1/4 in L

Standards

CE Marked | CSA File No. LR2025 | UL File No. E49747

Features

C Face With Base, 86.5% Full Load Efficiency

Specifications

Amperage Rating:	5.8 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13-1/4 in L
Enclosure Type:	TENV
Frame:	145TC
Frequency Rating:	50/60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	7/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 VAC
