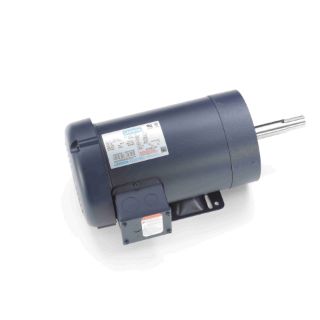

Actual Product May Vary From Image

122091.00 LEE

Name: 122091.00 LEE
Brand: Leeson Electric
SKU: 122091.00 LEE
Price: 874.74 USD
Availability: OutOfStock

LEESON® 122091.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 145JM Frame, 1745 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 122091.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$874.74

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, 2 hp, 230/460 VAC, 5.8/2.9 A, 60 Hz Frequency, 3 ph ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 145JM Frame, 0.88 in Dia x 4.21 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 16.42 in L x 7.3 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Totally enclosed fan cooled construction for maximum life in dirty or severe environments
Oversized locked bearing on shaft end limits axial shaft movement
High efficiency copper windings
Squirrel cage inverter rated

Specifications

Amperage Rating:	5.8/2.9 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16.42 in L x 7.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	145JM
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.88 in Dia x 4.21 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
