Home / 1221-2I LEV

1221-2I LEV

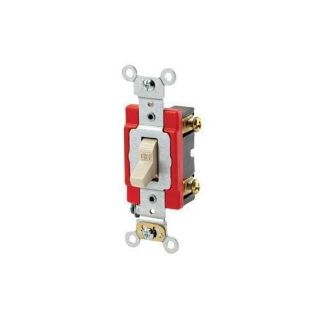

Picture of 1221-2I LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
1221-2I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$10.22 / EA

Description

Brand Name

Leviton®

Type

Self-Grounding

Alternate Supplier #

Grainger - 6LM79

Description

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Leviton®, 1221-2I, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SP Contact Configuration, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 60 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions

Application

Commercial Applications

Standards

RoHS Compliant | ANSI C73 | CSA C22.2 No. 111 File No. 152105 | NOM 057 | Federal Specification WS896E File No. E7458 | UL 20 | UL94 V-2 Flammability Rating

Features

  • Heavy gauge copper alloy brush arm for superior performance
  • Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
  • Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
  • Self-grounding clip (self grounding when used with a grounded metal wallbox)
  • 1 hp at 120 VAC, 2 hp at 240 VAC power rating

Specifications

Actuator:Toggle
Amperage Rating:20 A
Color:Ivory
Contact Configuration:SP
Contact Rating:1 hp at 120 VAC, 2 hp at 240 VAC
Country of Origin:US
Dimensions:46 in H x 1.31 in W x 13 in D
Enclosure:NEMA WD-1/WD-6
Environmental Conditions:-40 to 60 deg C Operating Temperature
Material:Thermoplastic
Mounting:Surface
Number of Poles:1
Operating Cycles:50000 Cycles
Power Rating:800 W, 1000 VA
Terminal Type:Back/Side Wire
Voltage Rating:120/277 VAC
