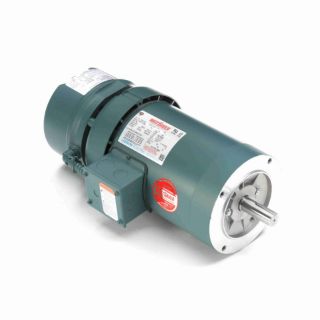

Picture of 122251.00 LEE
Actual Product May Vary From Image

122251.00 LEE

LEESON® 122251.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 143TC Frame, 1760 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 122251.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,709.27

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Brake Motors Application, Washdown Duty Motors Special Features, 1 hp, 208 to 230/460 VAC, 3.2 to 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 0.88 in Dia x 2.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 17.73 in L Dimensions

Application

Conveyors, Hoists, Packaging Equipment, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Washdown Duty Motors

Specifications

Amperage Rating:3.2 to 3.2/1.6 A
Application Type:Brake Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:17.73 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:143TC
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.88 in Dia x 2.25 in L
Speed:1760 rpm
Temperature Rating:40 deg C
Torque Rating:3 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
