Actual Product May Vary From Image

1223-2KL LEV

Name: 1223-2KL LEV
Brand: Leviton Manufacturing
SKU: 1223-2KL LEV
Availability: OutOfStock

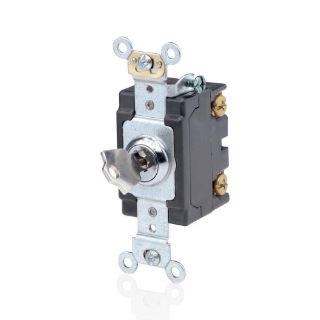

Leviton® 1223-2KL 3-Way AC Quiet Extra Heavy Duty Specification Grade Barrel Self-Grounding Locking Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 1223-2KL

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Way AC Quiet Extra Heavy Duty Specification Grade Barrel Self-Grounding

Alternate Supplier #

Grainger - 25MK88

Description

Leviton® Locking Switch, 3-Way AC Quiet Extra Heavy Duty Specification Grade Barrel Self-Grounding, 120/277 VAC, 20 A, 1 hp, 2 hp Power, Keyed Lock, Key Operated Actuator, Back/Side Wired Connection, Surface Mounting, Thermoplastic, Chrome, Environmental Conditions: -40 to 60 deg C, 4.06 in H x 1.31 in W x 2.87 in D Dimensions

Application

Commercial and Industrial Applications

Standards

ANSI C-73 | NOM 057 | CSA C22.2 No. 111 152105 Certified | UL Fed Spec WS896E E7458 | UL 20 | UL 94-V-2

Features

Heavy duty key operated locking mechanism for maximum tamper-proof operation in schools, institutions, public housing, trailer parks, loading docks, freight yards and other areas
Chrome lock dome with 2 keys provided per switch
Back and side wired terminals accept up to 14 to 10 AWG copper or copper clad wire
Large, combination head terminal screws with external clamps
Triple combination mounting screws for fast, easy installation
Heavy gauge rust resistant mounting strap with steel grounding screw and self-grounding clip (self-grounding when used in a properly grounded metal wallbox)
Key removable in ON or OFF positions
1 hp at 120 VAC, 2 hp at 240 to 277 VAC

Includes

(2) Key

Specifications

Actuator:	Key Operated
Amperage Rating:	20 A
Color:	Chrome
Connection:	Back/Side Wired
Country of Origin:	MX
Dimensions:	4.06 in H x 1.31 in W x 2.87 in D
Environmental Conditions:	-40 to 60 deg C
Lock Type:	Keyed
Material:	Thermoplastic
Mounting:	Surface
Power Rating:	1 hp, 2 hp
Voltage Rating:	120/277 VAC
