124645 DOD

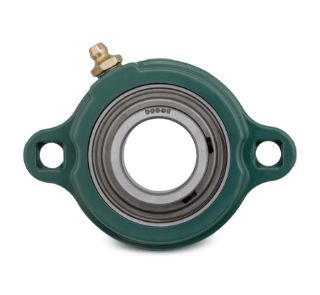

Picture of 124645 DOD
Actual Product May Vary From Image

Product Details

Manufacturer:
Dodge
Manufacturer part number:
124645
product.name:
124645 DOD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
$66.10 / EA

Description

Specifications

Ball Bearing Series:205 Series
Bearing Type:Ball
Bolt Diameter:0.3438
Bolt Diameter (Unit):INCH
Bolt to Bolt (Max):3.0000
Bolt to Bolt (Max) (Unit):INCH
Bolt to Bolt (Min):3.0000
Bolt to Bolt (Min) (Unit):INCH
Bore Length:1.0600
Bore Length (Unit):INCH
Dynamic Load Capacity:3146
Dynamic Load Capacity (Unit):POUND_FORCE
Expansion Capability:Non-Expansion (Fixed)
Greasable:Yes
Grease Name:Unirex N2
Housing Construction:Solid
Housing Material:Alloy
Housing Type:Two-Bolt Flange (Light Duty)
Insert Material:Steel
Lubrication:Grease
Maximum Speed:4500
Maximum Speed (Unit):RPM
Seal Type:Single-Lip Contact
Sensor Ready:Adapter Required
Shaft Attachment:Setscrew
Shaft Diameter:1.0000
Shaft Diameter (Unit):INCH
Standoff Housing:No
Static Load Capacity:1769
Static Load Capacity (Unit):POUND_FORCE
Suitable for High Temperature:No
Suitable For Washdown:No

Resources

Tech BulletinEngineering DrawingInstallation

Products Specifications

Brand Name
Baldor-Dodge
Flange Type
2 Bolt Flange
Measuring Units
Inch
Shaft Diameter
1 in
